Preliminary treatment is used to remove screenings and grit that enters a wastewater treatment plant from a sewered system. Preliminary treatment will have little effect on pathogens in the liquid wastestream. Primary treatment (also called primary sedimentation) is a sanitation technology that removes suspended solids and floating organic material (called scum) to reduce the suspended solids load for subsequent treatment processes. The removal of pathogens during primary treatment is not high; therefore, downstream treatment will require further pathogen removal technologies to meet discharge or reuse guidelines. It is not expected that discrete pathogens and indicator organisms are removed by settling during conventional primary treatment. However, they may be removed when attached to particles. In ordinary primary sedimentation systems that are properly designed and operated, the reduction of all types of pathogens and fecal indicators can be expected to be between 0 and 1 log10 units. With chemically-enhanced primary treatment and advanced primary treatment (also referred to as high-rate clarification) processes, helminth egg removal can be 1 to 3 log10 and virus, bacteria, and protozoa removal can be from 1 to 2 log10. Screenings, grit, and sludge will contain high concentrations of pathogens and must be safely treated and/or disposed to protect public health.
Preliminary treatment is the removal of untreatable solids that first enter a wastewater treatment plant from the sewer and is comprised of the following two processes (Mara, 2003; Metcalf &Eddy/AECOM, 2014):
Screenings and grit, if not removed at the beginning of a wastewater treatment plant, can impair downstream treatment processes and damage equipment (e.g., pumps) (Metcalf and Eddy/AECOM, 2014). Figure 1 shows where preliminary treatment is used within the sanitation service chain. Figures 2 through 5 show examples of manual and mechanized preliminary treatment systems in operation.
Figure 1. Locations where preliminary treatment is used within the sanitation service chain.
Figure 2. A manual preliminary treatment process with bar rack and horizontal grit chamber for a small wastewater stabilization pond system in León, Nicaragua. Screenings are removed by hand and should be buried or incinerated onsite. Grit, also removed manually, should be buried or stored onsite depending on quantities produced. (photos reproduced with permission of Stewart Oakley)

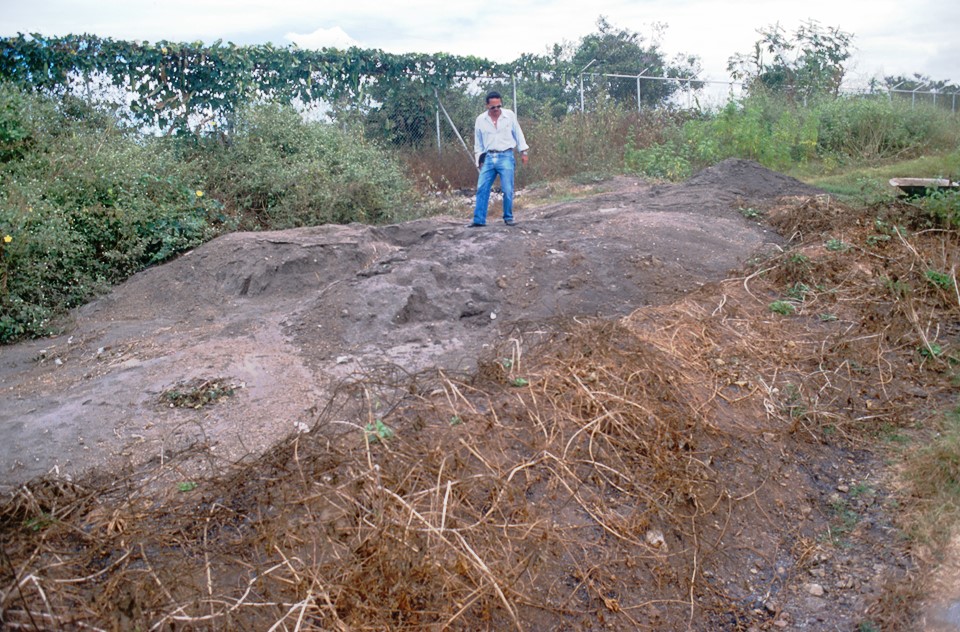

Figure 3. An excavation for disposal of screenings at a wastewater stabilization pond system in Masaya, Nicaragua. Lime is placed on top of the materials for odor control and partial disinfection. (photo reproduced with permission of Stewart Oakley)
Figure 4. Grit storage at a wastewater stabilization pond system in León, Nicaragua. Note the facility is fenced to prevent unauthorized entry. (photo reproduced with permission of Stewart Oakley)
Figure 5. A mechanized preliminary treatment system at the Cuzco, Peru wastewater treatment facility. The photos show the covered bar rack (top left) and mechanical disposal of screenings (top right) and the bottom photo the aerated grit chamber with mechanical disposal directly into trucks. As is often the case in developing countries, the screenings and grit are disposed in a poorly operated landfill and there is a high risk of pathogen release to the environment. (photo reproduced with permission of Stewart Oakley)
Production of screenings can range between 6-50 Liters/1,000 m3 of wastewater treated depending on the size of the openings. Grit production is highly dependent on local conditions and ranges from 4-37 Liters/1,000 m3 for sanitary sewers without stormwater inputs (Metcalf and Eddy/AECOM, 2014). Detailed information on the design and operation of preliminary treatment processes can be found in Mara (2003), Metcalf and Eddy/AECOM (2014), and USEPA (2003).
As Feachem et al. (1983) noted, preliminary treatment is not expected to remove pathogens in the liquid stream, and a few studies have reported quantitative data to this effect (Marin et al., 2015). Screenings and grit will be expected to contain high concentrations of pathogens, and this has occasionally been reported in the literature (Marin et al., 2015; Szostkova et al., 2012). Several investigators have also noted elevated concentrations of airborne microorganism indicators (bioaerosols) and detection of antibiotic resistant genes in enclosed mechanized preliminary treatment facilities as shown in Table 1 (Heinonen-Tankski et al., 2009; Li et al., 2016). Figure 6 illustrates the inputs and outputs for preliminary treatment processes.
Figure 6. Typical inputs and outputs for preliminary treatment
As discussed above, preliminary treatment will have little effect on pathogen removal in the liquid wastestream. Screenings and grit will contain high concentrations of pathogens and must be safely treated and/or disposed to protect public health. Mechanized facilities in indoor enclosures could potentially have elevated concentrations of airborne pathogens if proper air filtration/ventilation is not used; outdoor mechanized facilities (shown previously in Figure 5) could also have high airborne concentrations if they are not covered.
There is little that can be done to enhance the removal of pathogens in the liquid wastestream in preliminary treatment. The design engineer should ensure, however, that facilities and training exist for the safe treatment and/or disposal of screenings and grit. This is especially important in developing countries where open dumps are common and it cannot be assumed materials will be buried offsite in a sanitary landfill. In this case, treatment plant designs should include onsite disposal of screenings and grit (as was shown in Figures 2 through 5). Operation and maintenance manuals should include detailed discussion of the safe handling and disposal of screenings and grit, and operators should receive proper training.
Design of large-scale mechanized facilities should consider the possibility for airborne pathogens. Therefore, they should consider: (1) enclosed preliminary treatment units that are designed with proper ventilation and air filtration and (2) outdoor preliminary treatment units that are covered.
The objective of primary sedimentation (also known as primary treatment) is the removal of settleable organic solids and floating organic material (called scum) in order to reduce the suspended solids load for downstream treatment processes (Metcalf and Eddy/AECOM, 2014)). Scum is usually disposed separately or in combination with sludge/biosolids in wastewater treatment plants. No literature data were found on pathogen concentrations in scum, but it can be assumed to have significant concentrations and should be handled accordingly. Primary sedimentation is a form of centralized or semi-centralized wastewater treatment and is an integral part of conventional wastewater treatment (primary and secondary treatment) as developed historically and practiced today (Figures 7 and 8). Primary sedimentation tanks can be rectangular or circular, and typically operate with a hydraulic detention time of 1.5-3 hours based on the average daily flowrate (Figures 9 and 10). The settled primary sludge solids, which are highly putrescible, must be continuously removed from the bottom of the sedimentation tank and stabilized, usually by anaerobic digestion and less frequently by aerobic digestion (see Chapter on Sludge Management). Primary sludge typically contains 2 to 5% total solids with 60 to 80% organic content.
Typical performance data for the removal of total suspended solids (TSS) and biochemical oxygen demand (BOD5) in primary sedimentation tanks are shown in Figure 11. Primary treatment can remove up to 70% TSS and 45% BOD5 (Metcalf and Eddy/AECOM, 2014)). Primary effluent requires downstream secondary treatment for further removal of organic matter, usually aerobic technologies (e.g., chapter on Activated Sludge, chapter on Media Filters such as a trickling filter) or natural system technologies (e.g., chapter on Constructed Wetlands).
Figure 7. Locations where primary sedimentation is used within the sanitation service chain
Figure 8. Primary sedimentation within the framework of conventional primary and secondary treatment of wastewater and sludge management
Figure 9. A hopper-type rectangular sedimentation tank where settled solids are removed by hydrostatic pressure (left photo is the tank under construction; right photo is the tank in operation) (Panajachel, Guatemala) (photo reproduced with permission of Stewart Oakley)
Figure 10. A circular primary sedimentation tank discharging to a trickling filter. (University of San Carlos, Guatemala) (photo reproduced with permission of Stewart Oakley)

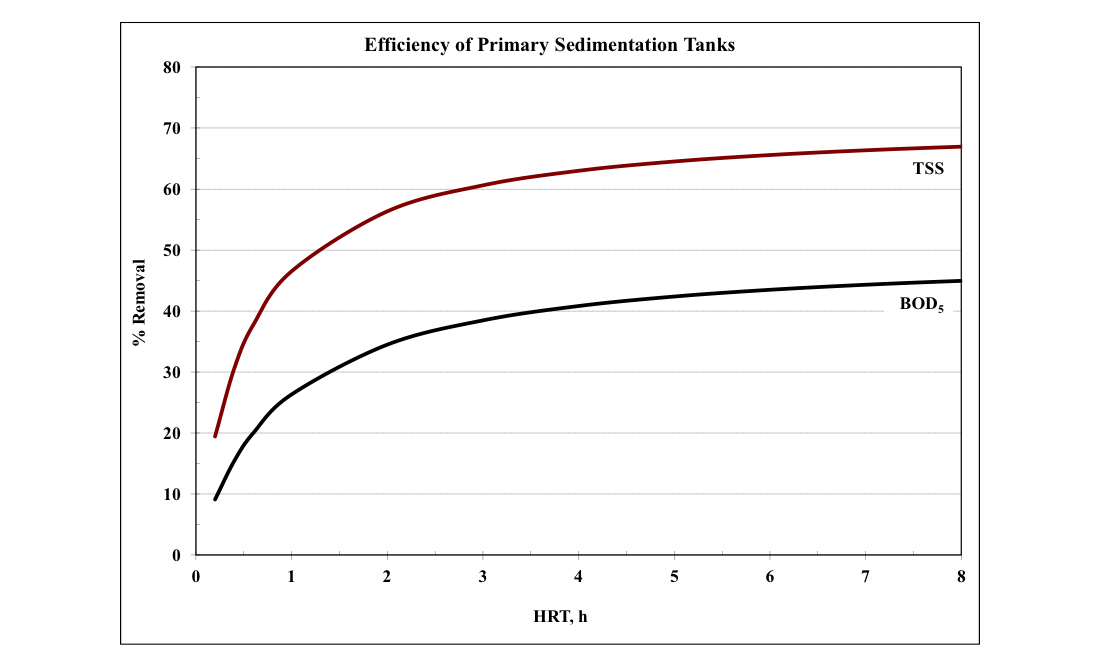

Figure 11. Efficiency of removal of total suspended solids (TSS) and five-day biochemical oxygen demand (BOD5) in primary sedimentation tanks as a function of hydraulic retention time (HRT in hours) (developed from equations available in Metcalf and Eddy/AECOM, 2014))
The removal of pathogens during primary treatment is not high, therefore downstream treatment will require pathogen removal technologies in addition to organic matter removal to meet discharge or reuse requirements. Primary sedimentation (including Imhoff tanks) produces from 110-170 kg dry solids/1,000 m3 wastewater treated (Andreoli et al., 2007; Metcalf and Eddy/AECOM, 2014), and this sludge must be stabilized, dewatered, and treated for pathogens before reuse as discussed in the chapter on Sludge Management.
Imhoff tanks are primary sedimentation tanks that include additional volume for settled sludge storage and anaerobic digestion. They are designed for small flows and are still commonly used in developing countries. As shown in Figures 12 and 13, an Imhoff tank consists of: (1) a V-shaped settling compartment, (2) a large compartment underneath the settling compartment for settled sludge storage and digestion, and (3) separate compartments for biogas venting and scum removal. Imhoff tanks are used in small communities because of low investment costs and simple operation and maintenance (Tilly et al., 2014). As with primary sedimentation tanks, the effluents from Imhoff tanks require further treatment before discharge or reuse. The sludge withdrawn from Imhoff tanks, which should be well digested before withdrawal, is typically dewatered in sludge drying beds.
Figure 12. A section and plan view of an Imhoff tank. The sludge digestion compartment can be as deep as 6 m to store and digest primary sludge. (Reprinted with permission of Eawag: Swiss Federal Institute of Aquatic Science and Technology, Department Water and Sanitation in Developing Countries (Sandec). Figure from Tilly et al. (2014) Compendium of Sanitation Systems and Technologies. 2nd Revised Edition. Swiss Federal Institute of Aquatic Science and Technology (Eawag). Dübendorf, Switzerland)

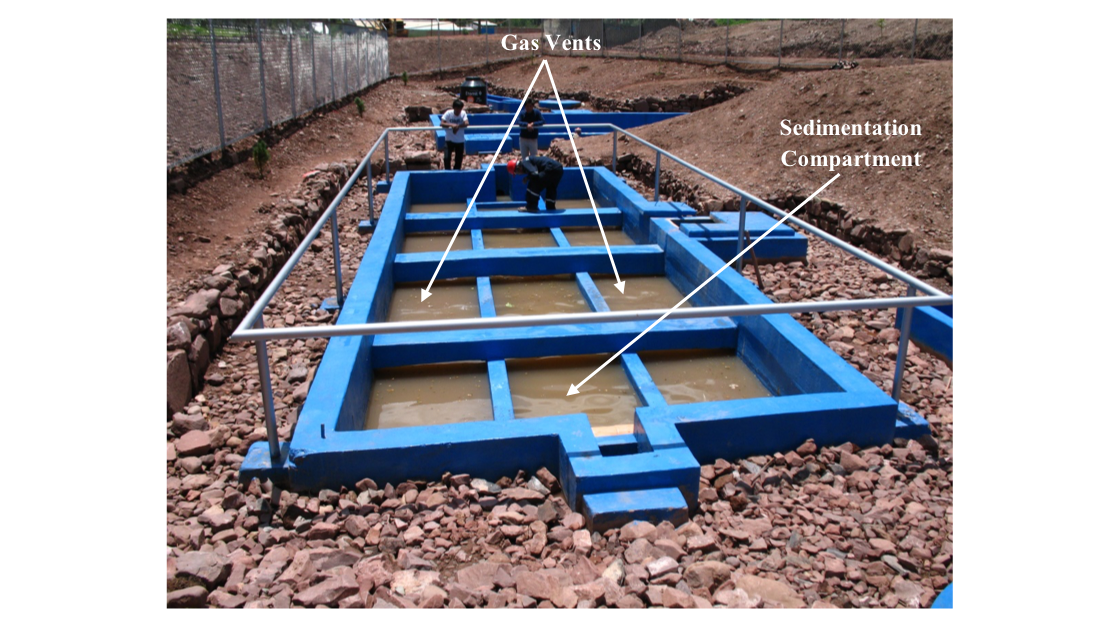

Figure 13. An Imhoff tank at completion of construction. This tank has a depth of 6 m and is below the groundwater table; as a result a curtain drain was installed to divert groundwater flow. (Saylla, Peru) (photo reproduced with permission of Stewart Oakley)
Chemically enhanced primary treatment (CEPT) and advanced primary treatment (APT) (also called high-rate clarification) can be used to improve the performance of primary sedimentation; CEPT uses a coagulation-flocculation process with conventional primary sedimentation while APT uses coagulation-flocculation with a high-rate lamellar settler for much shorter hydraulic retention times (Metcalf and Eddy/AECOM, 2014). Both processes can increase TSS removal to 80-90% (Metcalf and Eddy/AECOM, 2014) and have been proposed to specifically remove helminth eggs from untreated wastewater (Jimenez et al., 2010).
Detailed information on the design and operation of primary sedimentation processes, including CEPT and APT, can be found in and Metcalf and Eddy/AECOM (2014). Tilly et al. (2014) present information on the design and operation of Imhoff tanks. Historical information on pathogen fate in primary treatment and wastewater treatment systems is available in Feachem et al. (1981, 1983).
Primary sedimentation is used to treat the following liquid waste streams: domestic wastewaters, a variety of industrial wastewaters, combined domestic/industrial wastewaters, stormwater, and livestock facility wastewaters (Figure 14). Primary sedimentation tanks receive untreated wastewaters that typically have received pretreatment (screening and grit removal). Typical concentrations of pathogens in influent wastewaters are provided in the Introduction chapter. The outputs from primary sedimentation processes include primary effluent and primary sludge, both of which require further treatment for stabilization and pathogen removal: primary effluent is typically treated by aerobic secondary processes (e.g., trickling filters, activated sludge, etc.) and also anaerobic processes (e.g., anaerobic filter); primary sludge, which is continuously removed from sedimentation tanks in centralized systems, is most commonly stabilized by anaerobic digestion and then dewatered.
Figure 14. Typical inputs and outputs for primary sedimentation processes
Conventional primary sedimentation processes are designed specifically for suspended solids removal and any removal of viral, bacterial, protozoan or helminth pathogens is incidental to the design objectives. The reduction of viral, bacterial, and protozoan pathogens has been reported to range from 0 to 1 log10 units, and from 0 to <1 log10 for helminths, for conventional primary sedimentation (WHO, 2006). CEPT and APT processes, however, have been proposed for helminth egg removal and removals from 1 to 3 log10 have been reported (WHO, 2006). Furthermore, removal rates from 1 to 2 log10 for viruses, bacteria, and protozoa have also been reported in the literature for CEPT/APT (WHO, 2006).
A summary of the most important factors for removal of the different pathogen types is presented in Table 2. The principal removal mechanism for pathogens is sedimentation by retention in settling floc particles, whether in conventional or CEPT/APT processes (Figure 15). The retention in the settling floc can be due to adsorption to surfaces or entrapment within the matrix of the settling floc particles (Jimenez et al., 2010).

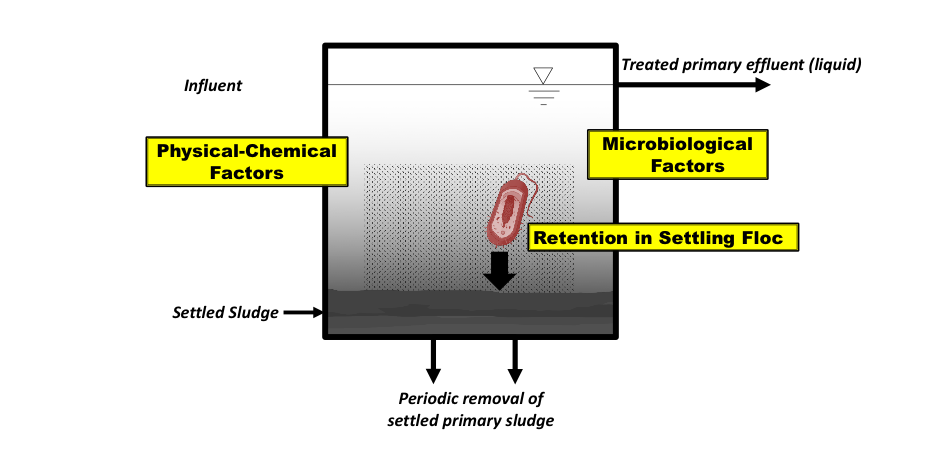

Figure 15. Major factors affecting pathogens in primary sedimentation
There are little data in the literature on the mechanism of pathogen retention in settling flocs in primary sedimentation processes. As a result, it is assumed that retention in settling floc particles is similar to the processes forming the flocs, which includes (Metcalf and Eddy/AECOM, 2014): (1) coalescence of fine particles, which gradually form settleable flocs, and (2) rate of coalescence, which is a function of the concentration of particles and their natural ability to coalesce upon collision. CEPT/APT processes enhance floc formation of fine particles and, as a result, more pathogens, especially large ones such as helminth eggs, will coalesce into the settleable floc particles.
The sedimentation of discrete helminth eggs (i.e., not attached to wastewater solids) does not occur in conventional primary sedimentation tanks. Design guidelines specify overflow rates of 30-50 m3/m2-d (meters cubed per meters squared per day) at average flow and 80-120 m3/m2-d for peak hourly flows (Metcalf and Eddy/AECOM, 2014)). These overflow rates are equivalent to settling velocities of 1.2-2.0 m/h (meters per hour) at average flow and 3.3-5.0 m/h at peak flow. Experimentally measured settling velocities for helminth eggs in treated water have been reported to average 0.22 m/h for Ascaris and 0.54 m/h for Trichuris (Sengupta et al., 2011). These settling velocities are equivalent to overflow rates of 5.3 and 13 m3/m2-d, respectively. Thus sedimentation basins would require a surface area approximately 6 times larger than conventional designs for the same flowrate to remove discrete Ascaris eggs.
Settling velocities for individual protozoa, bacteria, and viruses are even much lower than those of helminth eggs (Cizek et al., 2008; David and Lindquist, 1982; Kulkarni et al., 2004; Medema et al., 1998). Thus, it is not expected that these pathogens would be removed by settling during conventional primary treatment when not attached to particles.
The physical factors that affect the performance of sedimentation tanks can also be expected to influence pathogen removal by sedimentation. These factors include temperature and wind effects as shown in Figure 16. Temperature differences of 1°C between influent wastewater and the wastewater in the sedimentation tank can cause density currents to form, causing hydraulic short circuiting (Figure 16b); in addition, sedimentation efficiency is a function of water temperature, and colder temperatures increase water viscosity and retard particle settling (Metcalf and Eddy/AECOM, 2014). Wind blowing across the surface of sedimentation tanks can cause circulation cells to form, reducing the volumetric capacity of the tank (Figure 16d).
Peak wastewater flows can also significantly reduce the performance of sedimentation tanks, which are designed for the average daily flow with hydraulic retention times from 1.5 to 2.5 hours. Peak flows can range from 2 to 3 times the average flow, thus decreasing the hydraulic residence time (HRT) to 0.67 to 1 hour if the tank were designed for a 2 hour HRT at average daily flow. It can thus be assumed there would be very little pathogen removal under these conditions.
Design engineers can minimize these hydraulic impacts and ensure adequate performance by designing for: (1) peak flows and average daily flows with a safety factor to cover adequate ranges of HRT and overflow rates; (2) the temperature of water during the coldest months; and (3) scour velocities below the peak flow horizontal velocity (Metcalf and Eddy/AECOM, 2014).

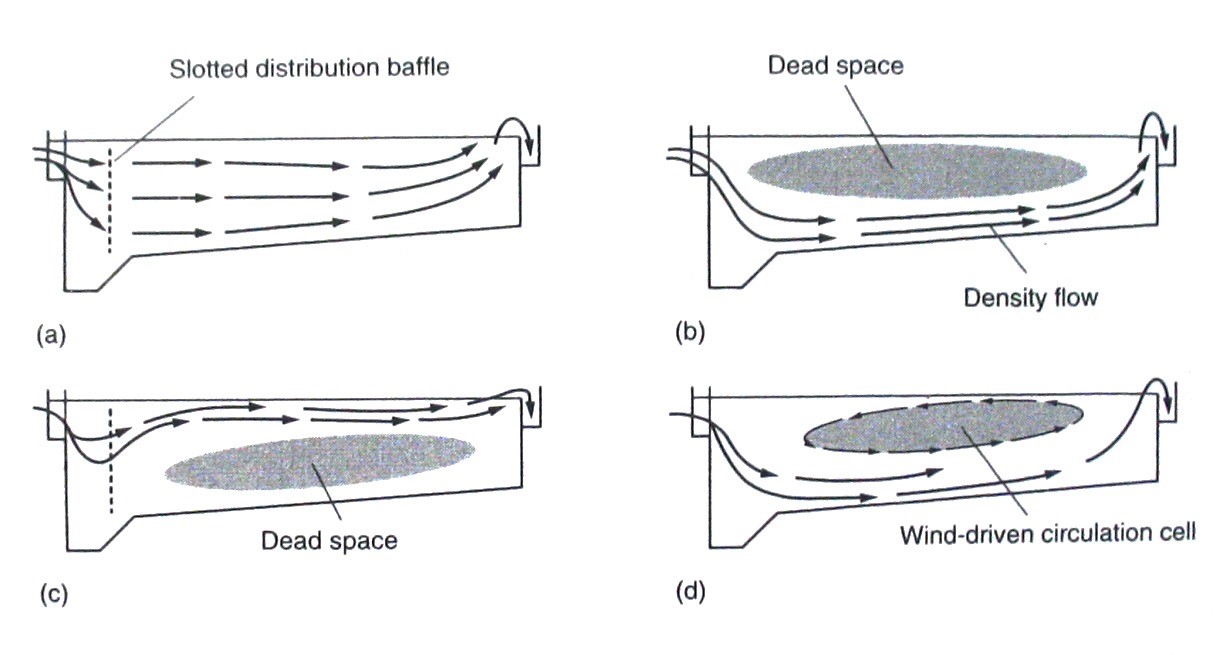

Figure 16. Flow patterns in rectangular sedimentation tanks: a) ideal flow; b) density flow where water in tank is warmer than influent; c) density flow where influent is warmer than water in tank; d) a wind-driven circulation cell. These various flow patterns can prevent the adequate sedimentation of suspended solids flocs and the pathogens associated with them. (reproduced with permission from Small and Decentralized Wastewater Management Systems, Crites and Tchobanoglous, 1988, copyright McGraw-Hill Education)
Chemical coagulants such as ferric chloride and aluminum sulfate (i.e., alum) increase the removal of TSS in conventional primary sedimentation from 50-70% to 80-90% in CEPT/APT processes (Metcalf and Eddy/AECOM, 2014). As a result, more pathogens would be removed with CEPT/APT, especially helminth eggs (Jimenez et al., 2001; Chavez et al., 2004).
Table 2 presented a summary of the main factors and mechanisms associated with pathogen removal in primary sedimentation.
For conventional primary sedimentation there is little that can be done (besides designing for improved hydraulic performance as discussed in section 4.2) to enhance the removal of pathogens because sedimentation basins are designed to remove suspended organic matter. The design engineer must ensure that wastewater treatment systems using primary treatment also have downstream secondary treatment processes such as trickling filters or activated sludge that are followed by disinfection, to remove pathogens from the final effluent to the extent necessary for their safe reuse. Primary sludge is highly unstable and contains high concentrations of pathogens; therefore it must be stabilized and treated for pathogens before safe reuse or final disposal.
CEPT/APT processes can be designed for helminth removal based on laboratory and pilot scale studies of the raw wastewater (Jimenez et al., 2010; Jimenez, et al., 2001; Jimenez and Chavez, 2002; Jiménez-Cisneros and Chávez-Mejía, 1997), but require a downstream filtration stage to meet the WHO guidelines of <1 helminth egg/L and a disinfection stage for bacteria and protozoa (Jimenez et al., 2001). Again, sludge produced from CEPT/APT processes contains high concentrations of pathogens and must be stabilized and treated prior to reuse (Jimenez et al., 2000).
Table 3 presents a summary of key factors associated with the removal of the four major groups of indicator pathogenic organisms in conventional primary sedimentation and CEPT/APT processes.
Figure 17 summarizes literature data on pathogen removal in conventional primary sedimentation and CEPT/APT processes. There are a paucity of data on pathogen removal from CEPT/APT processes at full-scale wastewater treatment plants and, as a result, the helminth data for CEPT/APT processes are based on laboratory and pilot scale studies (Jimenez-Cisneros and Chavez-Mejia, 1997; Jimenez and Chavez, 2002; Jimenez et al., 2010; Jimenez et al., 2001).

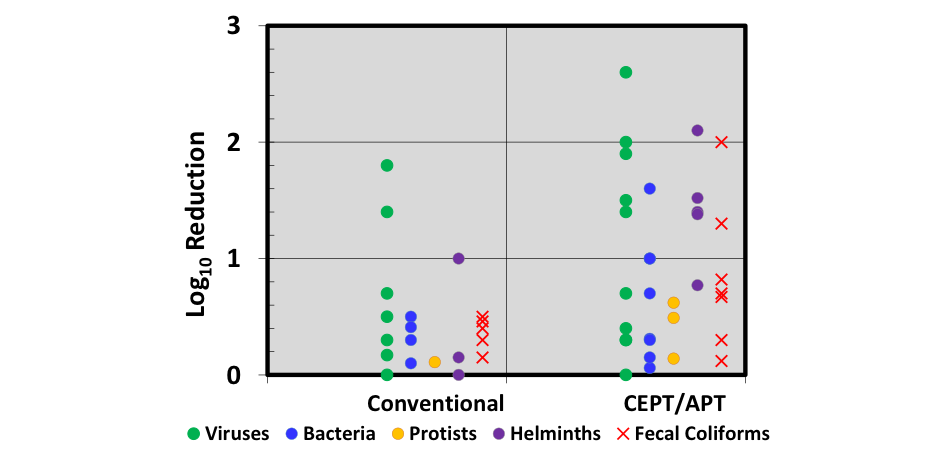

Figure 17. Reported log10 removal of pathogens and fecal coliforms (including E. coli) in conventional primary sedimentation and chemically enhanced/advanced primary treatment (CEPT/APT) processes. CEPT/APT data for helminths are from laboratory and pilot plant studies. Sources of data: Bosch et al., 1986; Chauret et al., 1999; Chavez et al., 2004; George et al., 2002; Jimenez-Cisneros and Chavez-Mejia, 1997; Jimenez and Chavez, 2002; Jimenez et al., 2010; Jimenez, et al., 2001; Lucena et al., 2004; Nordgren et al., 2009; Payment et al., 2001; Tanji et al., 2002; Zhang and Farahbakhsh, 2007
Table 4 presents a summary of the typical ranges and values of the removal of the four categories of pathogenic organisms and indicator organisms in conventional primary sedimentation and CEPT/APT processes. It is not expected that discrete pathogens and indicator organisms are removed by settling during conventional primary treatment. They are removed however when attached to particles. As shown in Table 3 and Figure 17, the reduction of viral, bacterial, and protozoan pathogens and fecal indicators can be expected to range from 0 to 1 log10 units, and from 0 to <1 log10 for helminths, for conventional primary sedimentation (WHO, 2006). CEPT and APT processes, however, have been proposed for helminth egg removal and removals from 1 to 3 log10 have been reported (WHO, 2006). Furthermore, removal rates from 1 to 2 log10 for viruses, bacteria, and protozoa have also been reported in the literature for CEPT/APT (WHO, 2006).
Primary treatment produces sludge at a rate of 110 – 170 kg dry solids/1,000 m3 of domestic wastewater treated, and this sludge must be stabilized, dewatered and preferably disinfected prior to reuse or final disposal (Chernicharo, 2007). Primary sludge contains high concentrations of pathogens, even if it has been stabilized and dewatered, as shown in Table 5.
