Summary

Sludge, biosolids, and faecal sludge are generated during management of wastewater and the contents of latrines. The direct disposal of untreated sludge is not desirable because it: 1) has odors, 2) is comprised primarily of water which makes transport and disposal expensive, and 3) contains harmful environmental pollutants and pathogens.  Several processes can decrease pathogen concentrations in sludge: 1) stabilization, 2) thickening, 3) dewatering, and 4) other processes that include composting. Stabilization uses biological, chemical, and/or thermal processes to reduce organic matter, water content, and odors and also provides some pathogen reduction. Thickening and dewatering can reduce volume and increase the concentration of total solids.  Thickening is performed prior to stabilization while dewatering is the final method of volume reduction before ultimate disposal of stabilized sludge (drying beds and mechanical processes). Other methods of sludge processing including composting, heat drying, and combustion.

Temperature and storage time are the two most important factors in achieving significant pathogen destruction. Moisture content and pH are also important.  Examples of sludge management technologies that can achieve temperatures greater than 45ºC if properly designed and operated are: 1) composting, 2) thermal treatment, and 3) thermophilic digestion.  For lower temperature treatments, pathogen concentrations are reduced but still routinely identified in treated sludge. Other ways to improve pathogen destruction are reducing moisture content by drying (through evaporation, transpiration by use of deep rooted plants, and drainage of water vertically from a drying bed), raising pH, and/or increasing the concentration of unionized ammonia (NH3). Sunlight’s role is mostly through supporting desiccation of drying sludge. Biological processes (e.g., digestion, composting) can reduce the volatile organic fraction of sludge; thus, reducing disease vector attraction. Helminth eggs are particularly resistant to treatment, including thermal and chemical treatment. Therefore, in regions where helminth infections regularly occur, it is recommended to first provide treatment in sludge-drying beds, and then to bury the dried sludge to minimize exposure. The World Health Organization also provides recommendations for storage treatment of dried excreta and fecal sludge. They recommend an additional barrier of safety of waiting one month between the time stored excreta is applied to a crop and the time the crop is harvested.

Faecal sludge is a distinct type of sludge that is generated onsite (e.g., discharge to toilet/latrine pits and septic tanks) and is not transported through a sanitary sewer. It has different physical-chemical characteristics than sludge generated at a centralized treatment plant. The service chain for faecal sludge management shows a potential for increased human health risk associated with pathogen exposure during the collection of the material and subsequent transport to a treatment or disposal facility. Thus design and management of toilet/latrine and septic systems must consider safe collection and transport of the contents.

1.0 Brief Technology Description

Sludge is generated during primary and secondary treatment of wastewater. “Biosolids” is a word used to describe sludge that receives treatment at a centralized facility and meets land application standards (NRC, 2002). “Fecal sludge” is a term used to describe sludge generated from an onsite sanitation technology that has not been transported in a sanitary sewer. It can be “raw or partially digested, a slurry or semisolid, and results from the collection, storage or treatment of combinations of excreta and blackwater, with or without greywater.” (Strande et al., 2014). The fundamental mechanisms of how pathogen levels are reduced in the management of sludge, biosolids, and fecal sludge are similar as are the treatment technologies. Accordingly, for the remainder of this chapter, the word sludge will be used to describe both biosolids and fecal sludge, except in locations where management strategies for a particular sludge type may differ.

The direct disposal of untreated sludge is not desirable because: 1) it has odors associated with it, 2) it is comprised primarily of water which makes transport and disposal more expensive, and 3) it contains harmful environmental pollutants and pathogens (Mihelcic and Zimmerman, 2014). An important point to consider is that in a centralized wastewater treatment plant, while the total volume of sludge is small compared to the total volume of wastewater, sludge management can cost up to 60 percent of the overall operating costs of wastewater treatment (Andreoli et al., 2007). Also, if managed incorrectly and released into the environment without adequate treatment, conventional pollutants and pathogens found in sludge can negate the health and environmental benefits of wastewater treatment. Sludge management is an integral component of centralized or semi-centralized wastewater systems (Figure 1) and onsite systems (shown later in Figure 6), serving cities and small communities alike. Fecal sludge management has also become a distinct area of sludge management with books and conferences devoted to it (e.g., Strande et al., 2014).

Figure 1. Location of sludge management within the sanitation service chain for a centralized or semi-centralized treatment facility (a figure of the service chain for fecal sludge is provided in Section 5)

There are many technologies to decrease pathogen concentrations in wastewater sludge. These technologies can be broken down into the following processes: 1) stabilization 2) thickening, 3) dewatering, and 4) other processes that includes composting. Examples of technologies associated with these processes are summarized in Table 1. Sludge stabilization typically uses biological and chemical processes to reduce odor, water content, and the presence of pathogenic organisms in sludge. The purpose of dewatering is to reduce water content because sludge associated with primary and secondary treatment of wastewater only has a solids content of half to several percent (sludge is thus mostly comprised of water in its original untreated state).

Table 1. Processes (and example technologies) to treat wastewater sludge and faecal sludge

Sludge Treatment Process

Objective

Example Technologies

Stabilization

to reduce problems associated with sludge odor and putrescence and the presence of pathogenic organisms.  It uses biological, chemical, and/or thermal processes to reduce organic matter, water content, and odors and also provides some pathogen reduction.

Biological Digestion (aerobic or anaerobic)



Chemical (e.g., alkaline (lime)) stabilization





Thickening and Dewatering

used to dewater sludge which reduces the sludge volume and increase the concentration of total solids.    Thickening is performed prior to stabilization while Dewatering is the final method of volume reduction before ultimate disposal of stabilized sludge (drying beds and mechanical processes). Though dewatering processes may result in the reduction of the total number of pathogens, they may also result in an increase in the volumetric concentration of pathogens, due to the reduction of overall volume.

Thickening



Mechanical belt presses



Centrifugation



Drying beds



Reed beds



Lagoons







Other Methods used to dewater sludge, which reduces the sludge volume and increase the concentration of total solids

Composting



Heat Drying



Combustion



For more information about sludge treatment and disposal or reuse, refer to Andreoli et al. (2007), Drechsel et al. (2010), Burton et al. (2014), Oakley and Salguero (2011), Oakley et al. (2012) and Semiyagaa et al. (2015). Strande et al. (2014) provide a comprehensive book on fecal sludge management. Several journal articles (e.g., Dumontet et al., 1999; Jiménez, 2007; Arthurson, 2008; Pepper et al., 2010) provide literature reviews of pathogens present in sludge and their fate by various treatment processes. Historical information on pathogen fate associated with sludge management is available in Feachem et al. (1981, 1983).

2.0 Inputs and Outputs

The outputs from sludge management include treated sludge and may also include biogas and other resources. Because treated sludge contains valuable resources (e.g., energy, carbon, nitrogen, and phosphorus), biosolids and fecal sludge are considered an integral part of a resource recovery strategy (e.g., a viable soil amendment if pathogens are reduced to safe levels). A recent study identified potential markets for fecal sludge in two Sub-Saharan cities (Dakar and Kampala) and concluded feasible uses included drying the sludge as a fuel for combustion, generating biogas from anaerobic digestion, deriving protein from sludge processing to use as animal feed, incorporating sludge as a component in building materials, and using sludge as a soil conditioner (Dienera et al., 2014). Fecal sludge obtained from processes that first separate urine is still valuable as a soil amendment, though it will contain less of the nutrients, nitrogen and phosphorus. This is because the majority of these two nutrients are present in human urine, and not feces. Biogas generated during anaerobic stabilization consists of approximately 2/3 methane by volume, which if collected and processed safely can provide a local source of energy used for cooking and heating, or in large scale applications, generation of electricity. Because methane is a much more powerful greenhouse-forcing gas than carbon dioxide (on a mass basis), care needs to be taken to ensure that biological stabilization processes are not just simply creating and releasing methane into the atmosphere (Bruun et al., 2014).

Table 2 provides information on the typical mass of sludge generated during primary and secondary wastewater treatment during centralized and onsite treatment. Besides odorous compounds, sludge may have other undesirable components: metals, trace organic chemicals, and pathogens. This chapter is only focused on reduction of pathogens.

Table 2.  Sludge generated during specific wastewater treatment processes



kg Suspended Solids Sludge Produced / kg COD Applied

Percent Dry Solids in Sludge (%)

Liters of Sludge Produced / Person-day

Conventional Primary Treatmenta

0.35 to 0.45

2 to 6

0.6 to 2.2

Septic Tank Primary Treatmenta

0.20 to 0.30

3 to 6

0.3 to 1.0

Secondary (i.e., biological) wastewater treatmenta

0.07 to 0.35

0.5 to 4.0

0.05 to 6.0

Ventilated Improved Pit (VIP) Toilet

NR

17 to 23b

0.07 to 0.40c

Urine Diverting Toilet

NR

40b

0.07 to 0.40d

NR: Not Reported

aAndreoli et al., 2007; bStrande et al., 2014; c filling rate reported by Foxan et al. (2011)Franceys et al. (1992) reported solids accumulation rates of 0.11 to 0.25 L/person-day; dassumed similar to VIP toilet

Table 3 provides expected concentration ranges of some pathogens present in specific types of wastewater sludge. In one review, Dumontet (1999) reported the following magnitudes of viral and bacterial pathogen concentrations per kg in untreated sludge: 103 (viruses), 106 (Salmonella spp.), 107 (Shigella spp.), 106 (Yersinia spp.), 103 (Brucella spp.), and 105 (Staphylococcus coagulase positive). The magnitude of the concentrations of specific pathogens in wastewater and sludge is however a function of social-economic factors that are specific to a particular community and its health.

Table 3. Expected range of pathogen concentration in sludge (values obtained from Andreoli et al., 2007)

Pathogen

Type of Sludge

Typical Concentrations

(Number per kg Total Solids)

Bacteria

Sludge

E+01 to E+07

Helminth eggs

Primary sludge

Digested sludge

Partially-dewatered sludge

Partially-dewatered sludge from aerobic treatment

Anaerobic sludge

E+03 to E+04

E+02 to E+03

E+01 to E+03

E+02 to E+05

E+03 to E+04

Protozoan (oo)cysts

Primary sludge

Digested sludge

Dewatered sludge

E+04 to E+06

E+04 to E+06

E+01 to E+02

Viruses

Primary and digested sludge

E+01 to E+05



3.0 Factors Affecting Pathogens in Sludge Management Systems

During sludge processing, pathogens are inactivated by different mechanisms. These mechanisms will be similar for biosolids and fecal sludge. Figure 2 reviews the major mechanisms that lead to pathogen destruction in four common sludge management technologies. The efficiency of each of these mechanisms is dependent on a number of environmental, design, and operational factors. Temperature and time have been identified as perhaps the two most important factors in achieving significant pathogen destruction during sludge management (Sahlström, 2003). This is shown in the four figures presented in Figure 2.

Figure 2. Major factors affecting pathogens in sludge digesters (top left), sludge drying beds (upper right), composting systems (bottom left), and land application systems (bottom right). Photo of composting system © 2015 Chesapeake Bay Program (CC BY-NC 2.0). Photo of sludge land application system © City of Geneva (CC BY-NC 2.0)

Other mechanisms used to promote pathogen destruction during sludge treatment are desiccation (i.e., reducing moisture content by air or heat drying), raising pH, and increasing free (unionized) ammonia (NH3) concentration. Because the pKa for the ammonium/ammonia acid base reaction is 9.3, producing unionized ammonia can be achieved by raising the pH, which converts ionized ammonium (NH4+) to NH3. Addition of urine and urea have also been proposed as a source of unionized ammonia (Vinnerås, 2007; Trimmer et al., 2016). Biological stabilization processes (e.g., digestion, composting) can reduce the volatile organic fraction of sludge; thus, reducing disease vector attraction and bacterial growth because of loss of available organic substrate (USEPA, 2003). Sunlight’s role in decreasing pathogen concentrations in sludge is most likely through supporting desiccation of drying sludge (USEPA, 2003).

Table 4 summarizes some of the important factors and mechanisms for pathogen reduction in sludge shown in Figure 2. A comprehensive book on fecal sludge management also provides discussion of these factors and mechanisms (Strande et al., 2014). Examples of sludge treatment technologies that can achieve temperatures greater than 45°C are: 1) composting, 2) heat treatment, and 3) thermophilic digestion. For lower temperature treatments, pathogen concentrations are reduced but still routinely identified in treated sludge (Gantzer et al., 2001). Tables 5 and 6 reinforce the importance of temperature in inactivating E. coli and a persistent pathogen such as Ascaris suum ova in sludge digesters. Increasing the pH of sludge (by lime addition) to levels above 12 is sufficient to reduce many pathogen concentrations to safe levels; however, it has been identified to not be as efficient on treating nematode eggs (which might require storage times as high as 6 months) (Gantzer et al., 2001).

Table 4. Summary of factors and mechanisms for pathogen reduction in sludge

Mechanisms and Factors

Evidence of Pathogen Vulnerability

Temperature/Time/Moisture

Inactivation of pathogens in sludge is a function of temperature, time, and moisture content. The rate of inactivation increases with increasing temperature and decreasing moisture content.



For instance, treatment at lower temperatures requires more time at the same moisture content to achieve the same level of pathogen reduction.

Long-term storage of dewatered sludge can inactivate all pathogens at the following temperatures (WHO, 2006):

2 to 20°C: 1.5 to 2 years

  • Reduces all pathogens to low levels

20 to 35°C: > 1 year

  • Substantial to total inactivation of viruses, bacteria, and protozoa.
  • More or less complete inactivation of helminths after 1 year.

Viruses

  • Poliovirus has been inactivated 3.0 log10 in laboratory thermophilic digesters (49 to 55 °C) (Aitken et al., 2005).

Protozoa

  • High temperatures cause more rapid inactivation of Cryptosporidium (oo)cysts (Reinoso et al., 2008)

Helminths

  • Temperature is the most important factor for the inactivation of helminth eggs in thermophilic anaerobic digesters. A 3.0 log10 removal of Ascaris was documented at temperatures of 53 and 55°C (Aitken et al., 2005).
  • Ascaris in composted excreta has been inactivated in a solar thermal post-treatment unit at the following levels (Darimani, 2015):

2.0 log10: 2 hours at 50°C and 50% moisture

3.0 log10: 3 hours  at 60°C and 50% moisture



Alkaline stabilization with quicklime (CaO)



Application of CaO to dewatered sludge to raise the pH >12 causes an exothermic reaction with temperatures exceeding 50°C



Alkaline stabilization, if properly engineered and operated, can inactivate viral, bacterial, protozoan and helminthic pathogens (Burton et al., 2014).



Table 5. E. coli removal in mesophilic anaerobic digesters (summarized by Horan et al., 2004)

Operating Conditions

Removal of E. coli (log10 units)

Reference

14 days retention time, 10°C

0.5

Le et al., 2002

14 days retention time, 25°C

1.0

Le et al., 2002

Primary sludge digestion in full-scale plants in England

1.0

Le et al., 2000

Secondary sludge digestion in full-scale plants in England

1.5

Le et al., 2000

35 to 37°C for 20 days HRT in France

1.5

Gantzer et al. 2001

Survey of primary sludge facilities in England

1.35 to 3.36

Humphrey, 1999



Table 6. Time needed to reach 99% (T99) inactivation of Ascaris suum ova during anaerobic digestion of sludge under various temperatures (from Manser et al., 2016)

Digestion Temperature (°C)

T99

Reference

10

> 2,555 days

Sanguinetti et al. (2005)

20

450 days

Pecson et al. (2007)

30

180 days

Pecson et al. (2007)

35

22 days

Manser et al. (2015)

40

5 days

Pecson et al. (2007)

50

110 min to 4 days

Pecson et al. (2007); Popat et al. (2010)



The biological and chemical treatment of sludge does not necessarily inactivate all pathogens. Helminth eggs are particularly resistant to sludge treatment processes. For example, Gaspard et al. (1995) found that helminth eggs in treated sludge from wastewater treatment plants in France contained the following percentages of viable eggs: 1) anaerobic digestion: 66%, 2) composting: 25%, and 3) lime treatment: 66%. In addition, Sahlstrom et al. (2003) found the following percentages of Salmonella still remaining in treated sludge from eight wastewater treatment plants in Sweden: 1) mesophilic anaerobic digestion: 58%, 2) thermophilic anaerobic digestion: 12.5%, and 3) composting: 12.5%.

4.0 Design, Operation and Maintenance Guidelines for Pathogen Reduction in Sludge Management Systems

Of the four sludge stabilization technologies discussed in this chapter, composting of sludge after biological stabilization (e.g., anaerobic digestion) and heat pelletization (30-37°C for 10-20 days following by low pressure oxidation drying systems) have been found to provide the lowest levels of culturable fecal indicators and pathogen genomes. These two technologies were followed by temperature-controlled anaerobic digestion and finally mesophilic anaerobic digestion (Viau and Peccia, 2009). Thermophilic biological processes such as aerobic digestion and composting raise the temperature of the sludge while biological processes like anaerobic digestion may have heat added to achieve thermophilic temperatures (sometimes by burning the methane found in the biogas output). Sludge may also be disposed of in a sanitary landfill. While disposal may be a safe management strategy, it limits opportunities for resource recovery.

4.1 Aerobic and Anaerobic Sludge Digestion

Digestion is a common method of sludge stabilization. It is employed by large treatment plants, households, and small to large farms. During digestion, the organic and odorous fraction of the sludge is stabilized by microorganisms that degrade the volatile organic fraction of the sludge in the presence or absence of oxygen. Digesters can be fed continuously or intermittently. Low rate (i.e., passive) digesters are typically mixed and operated at ambient temperature while high rate (i.e., active) digesters are mixed and may be aerated and/or heated. Sludge derived from a digester may be further processed by other treatment methods discussed in this chapter (e.g., dewatering technologies).

An important point of digester design and operation for pathogen reduction is that digesters can be operated under mesophilic (temperature range of ≈ 25-40°C) or thermophilic (temperature range of > 40°C) conditions. In general, because of its higher temperature, thermophilic digestion is more efficient at reducing pathogen levels than mesophilic digestion. It is in fact recommended that for anaerobic digesters operated in the temperature range of 35-55°C, the solids retention time (referred to as SRT) of the sludge be at least 15 days while for 20°C the solids retention time would need to increase to 60 days (USEPA, 1994). To provide an additional general point on the importance of temperature in pathogen removal, the t90 (the amount of time it takes for 90% or 1 log10 reduction) for bacteria ranges from hours to days for thermophilic digestion and from weeks to months for mesophilic digestion (Sahlström, 2003). When operated with the same retention times, batch operations generally result in better pathogen removal than continuous flow operations, due to the fact that continuous flow operations result in partially-mixed conditions with short-circuiting that may cause some of the pathogens to remain in the reactor for much less than the average retention time (Manser et al., 2015).

The literature is not clear if the amount of volatile fatty acids (VFA) present in sludge has an impact on the fate of pathogens. For example, VFAs were shown to inactivate Shigella by more than 6.5 log10 units in night soil with 9,000 mg/L VFAs after 18 days at pH 6.5 (Kunte et al., 2000) and Salmonella by more than 7 log10 units in an anaerobic sludge digester with 5,000 mg/L VFAs after 12 days at pH 6 (Kunte et al., 1998). Ascaris eggs were completely inactivated at pH 5 – 6 when exposed to VFAs for only 20 hours in distilled water, but in sewage sludge, 82% of the eggs still remained viable after a week (Butkus et al., 2011). Typical reductions in the concentrations of fecal indicator organisms during digestion are reported to be approximately 1-2 log10 units (Farrell et al., 1988).

4.1.1 Aerobic digestion

In aerobic digestion, a batch or continuous flow system is set up that provides air to the sludge via mixing or some form of mechanical aeration. These reactors are typically not heated but thermophilic bacteria that degrade organic carbon during the process produce heat. A batch operated aerobic digester can require aeration for up to 2-3 weeks. Aerobic digestion performed at a solids retention time of 40 days and temperature of 20°C or a solids retention time of 60 days and lower temperature of 15°C is expected to reduce bacterial and viral pathogens by 90% (USEPA, 2003). As might be expected, thermophilic aerobic digestion has much better removal of pathogenic bacteria, viruses, and parasites than mesophilic anaerobic digestion (Kabrick and Jewell, 1982).

4.1.2 Anaerobic digestion

Anaerobic digestion is a more common type of sludge digestion. It takes place in an enclosed reactor (that may or may not be heated). In an anaerobic environment void of oxygen, organic material is reduced to carbon dioxide (approximately 1/3 of the gas volume), methane (approximately 2/3 of the gas volume), and ammonia. The three-step biochemical process includes hydrolysis, acidogenesis and acetogenesis, and methanogenesis. In a low-rate system, mixing is typically caused by gas bubbles that rise through the sludge and influent sludge is added intermittently. A high-rate system employs active mixing and controlled temperatures to increase the rate of sludge stabilization and pathogen inactivation (USEPA, 2003).

While a 1 to 2 log10 reduction has been observed for fecal coliforms and heterotrophic bacteria during anaerobic digestion (Chauret et al., 1999), Clostridium perfringens, Enterococcus sp., and Giardia cysts are reported to have no statistically significant reduction during anaerobic digestion at 36°C with a retention time of 20 days. (Soares et al., 1994; Sykora et al., 1991; Chauret et al., 1999). Chauret et al. (1999) also reports the reduction of 0.09 log10 units of somatic coliphages during anaerobic digestion.

Infectious virus particles are reduced approximately 1 log10 during full-scale mesophilic anaerobic digestion (36°C) in a primary digester operated at a hydraulic residence time of 14 days followed by a secondary digester that increased the contact time by an additional 9 days. Pepper et al. (2010) reported that over a 17-year period study, the performance of eighteen full-scale mesophilic anaerobic digesters in the U.S. (serving populations of > 0.5 million) the average removal of enteric viruses was 94.4%, Salmonella was 97.6%, fecal coliforms was 98.9%, and total coliforms was 98.8%. If the temperature is raised to 50°C virus inactivation is reported to reach 99.99% (Sanders et al., 1979).

4.1.3 Small scale anaerobic digesters

Small scale anaerobic digesters can be constructed from brick or plastic materials (Figure 3). They are the most common anaerobic digesters used by farms and households in low-income countries. They are typically operated under ambient conditions and fed on an intermittent basis with agricultural wastes (e.g., manure), which can be mixed with human waste. Because these systems produce methane (which has ≈25 times the global warming potential of carbon dioxide), before these systems are implemented, it should be ensured that the resulting demand for biogas will be ≥ gas production and systems are regularly maintained to ensure no leakage of biogas to the atmosphere.

Figure 3. Left) Filling a tubular anaerobic digester with sludge. Right) Tubular digester (dark cylindrical tube) located inside a clear plastic covering to promote higher temperature (photos provided by Danielle DeVuyst with permission)

However, use of anaerobic digesters operated in this manner may not be sufficient to safely inactivate persistent human pathogens such as Ascaris spp. Because these digesters are typically fed intermittently, a user only has control over the solids retention time and feeding interval. It is expected that these reactors also operate at lower temperatures which may be near ambient. For example, one study observed the temperature of an operating tubular biodigester in Costa Rica that was fed swine manure to be near ambient temperature (21-24°C) (Kinyua et al., 2016).

Kinyua et al. (2016) also concluded that temperature and volatile fatty acid concentration were the main factors contributing to Cryptosporidium parvum and Giardia lamblia inactivation in tubular digesters. They reported a 1.56 (± 0.24) log10 reduction for G. lamblia and 0.55 (± 0.01) log10 reduction for C. parvum over a 24-day period at a temperature of 21°C and volatile fatty acid concentration of approximately 300 mg COD/L.

Manser et al. (2016) developed a mathematical model to estimate the inactivation of Ascaris suum ova in household-scale digesters that are fed on a semi-continuous basis. That work demonstrated two things. First, at 35°C, A. suum ova inactivation was found to be weakly dependent on feeding frequency (i.e., inactivation only increased slightly, from 61 to 64% when the feeding interval was increased from 2 to 7 days). In contrast, the model showed that A. suum ova inactivation was more dependent on solids retention time (i.e., inactivation increased from 40 to 73% when the solids retention time was increased from 15 to 45 days). The second item demonstrated in this study was related to field operation that would result in safe use of treated sludge that contained persistent pathogens such as Ascaris. In this case, regardless of the feeding interval, it is expected that some percent of the digester effluent will remain in the reactor less than the time required to inactivate the ova. Thus, one can’t ensure the digester effluent is completely safe in these reactors, unless an upper mesophilic temperature is maintained or the feeding interval exceeds the critical time needed for complete inactivation.

Literature thus suggests that to ensure inactivation of persistent pathogens like Ascaris spp. in an intermittently fed digester operated under mesophilic conditions, a user may want to add a second digester of equal dimensions and alternate use of the two digesters. The first digester contents would then be left in a storage mode after it reaches capacity, then the user would revert to the second digester. This strategy is typically employed for operation of dual compost latrines (Mehl et al., 2011). It has also been suggested that in single state digesters with a fixed solids retention time, differences in reductions of bacteria and viruses may occur if the reactor is operated using a “draw down, then fill” feeding protocol versus a “fill, then draw down” feeding protocol (Farrell et al., 1988). In that study, the impact of feeding protocol was observed to be greater for bacterial indicators than viruses (i.e., 1-1.5 log10 difference for bacterial indicators versus 0.24 log10 difference for viruses). Effluent from these reactors can also be further treated in sludge-drying beds or human exposure can be reduced by burying sludge to reduce health risks by minimizing exposure (as discussed in the Conclusions).

4.2 Chemical Treatment

Chemical treatment can consist of adding an alkaline material or ammonia to sludge. The most typical chemical treatment method is to stabilize sludge by adding an alkaline material such as quicklime (i.e., calcium oxide or CaO), hydrated lime (i.e., calcium hydroxide or Ca(OH)2), lime containing kiln dust, or fly ash with the sludge. The kg of hydrated lime required per 1,000 kg of dry sludge to raise the pH above 12 is reported by Malina (1993) and averages 110 kg for primary sludge, 270 kg for activated sludge, and 170 kg for anaerobic digested sludge.

The best removal of pathogens with addition of alkaline material is obtained if the pH is raised to at least 12 for 72 hours (Andreoli et al., 2007). Long term storage of the sludge treated in this manner requires the pH to remain above 12 to ensure there is no regrowth of pathogenic organisms. In full scale study in France, no viable enterovirus or genome was detected in sludge treated after mechanically mixing with quicklime at a proportion of 50% dry matter to the biological sludge, which has previously undergone thickening and dehydration (Monpoeho et al., 2004).

Aqueous phase free ammonia is lethal to microorganisms. It is found in digesters, especially at higher pH and temperatures. Pathogens can also be reduced by adding ammonia directly to the sludge, by use of urea or urine. Aqueous phase free ammonia greater than 80 mg NH3/L has been reported to be lethal to Ascaris suum ova (Cruz-Espinoza et al., 2012; Pecson et al., 2007; Nordin et al., 2009). This technology has been proposed for management of fecal sludge (e.g. Trimmer et al., 2016).

4.3 Composting

The composting process is discussed by Andreoli et al. (2007) and Strande et al. (2014). Andreoli (2007) and Mihelcic et al. (2009, 2014) provide examples on design and calculation of the proper mixture to achieve a sufficient carbon-to-nitrogen ratio. Composting can be performed using one of three methods: 1) aerated static pile, 2) in-vessel, and 3) windrow. Windrow is the less complex and more traditional process. Composting has relatively low capital costs, but it requires a larger amount of land area and may generate odorous air if not properly aerated. A video of composting sludge with plant waste using mechanical turning is shown here: https://www.youtube.com/watch?v=3RzPIuSNykE. Compost can also be turned manually.

Figure 4. Windrow composting allows for mixing of the components (photo from U.S. Department of Agriculture, Agricultural Research Service Information Staff). The figure shows the composting of plant waste, not sludge; however, the principle is the same).

During windrow composting, a mixture of sludge and bulking agents is placed in rows (called windrows) 1-1.8 m high and 2-2.5 m wide. The windrows are mechanically turned at regular intervals for a minimum of 15 days (USEPA, 1994). Samples are then stabilized further so the total time of composting and final stabilization may be 50-90 days.

During the composting process, dewatered sludge (Andreoli et al. (2007) suggests a solids concentration of > 35%) is mixed with bulking agents (e.g., municipal bulking agents of market, house, and park waste) and microorganisms degrade organic carbon in the compost pile and in the process generating heat. This thermophilic process can attain temperature of up to 80°C (ideal temperatures are 55-60°C, higher temperature and increased contact time result in better destruction of pathogens). Temperatures of 40-60°C can be achieved within the first three days (Andreoli et al., 2007). As the readily available organic carbon is degraded, temperatures will fall to 55°C or less. One recommendation to reduce pathogens during windrow composting of sludge is to maintain a temperature of ≥ 55°C for at least 15 days while turning the windrow at least five times (USEPA, 1994). Maintaining an appropriate pH is usually not a critical factor if the carbon-to-nitrogen ratio is adequately set (Fernandes, 2000). One issue not well studied is whether these higher temperatures are achieved in small scale composting operations that don’t employ mechanical mixing.

The key to increasing destruction of pathogens during composting is to ensure the thermophilic composting process achieves higher temperature by: 1) maintaining a sufficient supply of oxygen (through static or mechanical/manual aeration), 2) maintaining moisture content between 50-60%, and 3) raising and maintaining the carbon-to-nitrogen ratio to 20-30:1. Important to successful operation is the fact that temperature and moisture content are relatively easy parameters to monitor. In addition, because the heat produced during the composting process is lost to the surrounding environment, higher compost temperatures may be more difficult to maintain in cooler climates. Andreoli et al. (2007) report that batch composting systems require 12-30 m3 of air per hour per kg of dry mixture at the beginning of the process. This rate of aeration may reach as high as 190 m3 of air per hour per kg of dry mixture as the thermophilic organisms grow. In natural aerated systems, it is recommended to mix the contents at least five times while the organics are in their thermophilic growth phase.

Because municipal wastewater sludge and feces have a carbon-to-nitrogen ratio of 5-10:1, carbon rich materials (i.e., bulking agents) are added to create an appropriate mixture. Examples are provided in Andreoli et al. (2007) and Mihelcic et al. (2009) on how to achieve appropriate mixtures of sludge and other additives. These additives also provide better porosity to facilitate aeration of the compost pile. Carbon rich bulking agents can be municipal wastes such as market, yard, and park waste but may also include agriculture and industrial byproducts such as wood chips, wood bark, sawdust, straw, and rice hulls. Carbon-nitrogen ratios for different bulking agents are available in references mentioned earlier and on-line. Fecal sludge from composting latrines need to be carefully monitored for presence of pathogens as many latrines, as operated currently, may not achieve temperature much greater than ambient (see Mehl et al., 2011). Thus post treatment of fecal sludge from composting latrine by increasing temperature has been shown to further reduce virus and Ascaris concentrations (Darimani et al., 2015).

Bacterial and viral pathogens can be reduced 1-2 log10 units if composted at 40°C or higher for up to 5 days. Reduction of bacterial indicators as high as 2-5 log10 may be achieved in composting (Sidhu and Toze, 2009). It is beneficial that for 4 hours during this 5-day period the temperature of the pile exceeds 55°C (USEPA, 2003). In one study, no enteroviruses were cultured from sludge that was composted for 3-4 weeks (at temperatures that ranged from 30-68°C) and then left for a further 3 months in a maturation rack (Monpoeho et al., 2004). Insufficient research on the fate of helminths and protozoa in sludge composting systems was identified for this chapter.

Fecal sludge has been treated using vermicomposting. Vermicomposting consists of using worms that grow on the fecal sludge and produce a residue referred to as vermicompost that is reported to be high in nitrogen and phosphorus. Moisture levels much be maintained at 65-85% by addition of dry bulking agents and treatment time can exceed three months (Semiyaga et al., 2015). Vermicomposting has been reported to reduce pathogen levels found in wastewater biosolids. For example, a field experiment using vermicomposting to treat wastewater biosolids that was applied in windrows (6 m long by 1.5 m wide and 20 cm deep). Worm biomass was then added at a ratio of 1:1.5 wet weight earthworm biomass to biosolids. In that particular study the following reductions were observed: 6.4 log10 reduction in fecal coliforms, 8.6 log10 reduction of Salmonella spp., 4.6 log10 reduction in enteric viruses, and 1.9 log10 reduction in helminth ova (Eastman et al., 2001).

4.4 Thermal Treatment

Thermal treatment (i.e., heat drying) can be performed on primary or stabilized sludge. Treatment of fecal sludge by mechanical dewatering and thermal drying can be followed by pelletizing to produce a final product that can be used as a soil conditioner and fertilizer (Strande et al., 2014). It is feasible when performed on dewatered sludge and if the influent solids content is 15-30% solids. Reducing water content prior to heat drying is very important because 2,744 kJ of energy are required to evaporate 1 kg of water contained in sludge (Andreoli et al., 2007). Thermal treatment can also result in reduction of sludge volume, reduced storage and transport costs. Also, no special equipment is required for land application of the processed biosolids. However, thermal treatment is an incineration process that requires input of external energy. High temperatures can be reached in thermal treatment processes such as fluidized bed dryers and drum dryers (Table 7) and will ensure the sludge is virtually free of pathogens and meets health standards for less restricted land applications. However, the temperatures reached in other systems, such as belt dryers, may not necessarily be high enough to destroy all types of pathogens (Figure 5), given the short amount of time sludge is retained in these systems (typically < 1 hour).

Table 7. Typical temperatures achieved in common thermal treatment technologies for sludge (data from Burton et al., 2014)

Thermal Treatment (Heat Drying) Technology Typical Operation Temperatures (ºC)
Belt Dryer < 90
Fluidized Bed Dryer 120
Other Direct Dryers 370

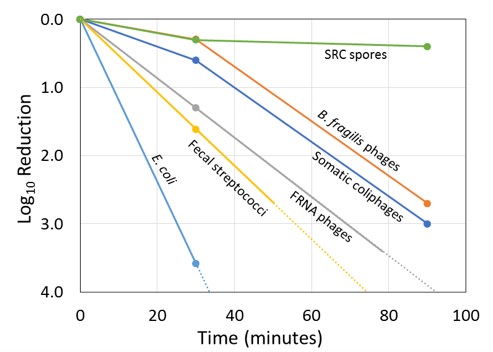

Figure 5. Reduction of bacterial and viral pathogen surrogates in sludge during thermal treatment at 80°C (data obtained from Mocé-Llivina et al. 2003).

4.5 Thickening and Dewatering

Thickening of sludge has been applied to sludge associated with primary treatment, activated sludge, trickling filter processes, and fecal sludge. Dewatering processes and sludge drying are applied to digested sludge (Andreoli et al., 2007). Sludge drying can be applied to any type of sludge.

3.5.1 Thickening

The purpose of sludge thickening is to reduce the water content of the sludge and the inherent time expense associated with transporting or thermally treating the water found in sludge. Another reason to reduce the water content of sludge is to decrease the volume of sludge required for land application or disposal. Sludge thickening is typically accomplished by: 1) gravity thickening and 2) dissolved air flotation thickeners. Sludge thickening does not reduce water content enough that it would be expected to inactivate pathogens to any significant manner.

A gravity thickener looks similar to a circular gravity sedimentation tank. The influent sludge is applied to the center and thickened sludge is removed from a withdrawal mechanism located in the bottom of the tank. Design of a sludge thickener is based on solids loading rate (kg total solids (TS)/m2-d) and hydraulic loading (m3/m2-d) (Andreoli et al., 2007). Dissolved air flotation technologies are typically applied to sludge derived from the activated sludge process or in treatment plants that incorporate biological phosphorus removal. In this process, air is forced into the liquid sludge under high pressure. As depressuration occurs, the dissolved air forms gas bubbles that rise to the surface, carry particulates to the surface where they can be skimmed off.

No relevant data on pathogen inactivation during sludge thickening processes was identified, and it is assumed that this process makes a negligible change in the levels of pathogens in sludge.

4.5.2 Mechanical dewatering

Mechanical dewatering methods include technologies such as a: 1) belt filter press and 2) centrifuge. Their purpose is to reduce the water content of sludge but not enough that they would be expected to inactivate pathogens. A belt filter press is a mechanical device where sludge is added to a moving belt at ambient temperatures and that is squeezed to remove water. A centrifuge consists of a bowl where solids are moved to the wall by centrifugal force and scraped out by a screw conveyor (Mihelcic and Zimmerman, 2014; Strande et al., 2014).

A study from five treatment plants in the U.K. (Monteleone et al., 2004) reported that for mesophilic anaerobically digested sludge that was dewatered by mechanical methods, most of the centrifuge dewatering systems concentrated E. coli in the sludge and E. coli concentrations did not increase when the sludge was dewatered by a belt filter press. Variations in E. coli concentrations across different mechanical water systems that may be dependent on the origin of the sludge and the specific dewatering process. Centrifugation appeared to increase E. coli concentrations by a little over 1 log10 unit while a belt filter process was found to have a similar reduction in E. coli (Monteleone et al., 2004). It was believed the increases in centrifuge indicator counts suggests that physical forces during dewatering cause disruption of floc structures which releases microorganisms associated with solid particles.

A quantitative microbial risk assessment (QMRA) that accounted for rotavirus, adenovirus, haemorrhagic E. coli, Salmonella, Giardia and Cryptosporidium was performed at a Swedish 12,500 m3/d treatment plant that contained tertiary wastewater treatment and mesophilic sludge digestion. The QMRA showed the greatest individual health risk from a single exposure was to workers exposed to aerosols produced at a belt press used for sludge dewatering (virus infection risk = 1). The largest community impact was determined to arise if children ingested sludge at an unprotected storage site (Westrell et al., 2004).

4.6 Dewatering by Drying

4.6.1 Sludge drying beds

Dewatering of sludge can also occur through water evaporation, plant transpiration, or vertical transport of water out of a layer of sludge spread over a drainage layer. There are many technologies that employ dewatering by these three mechanisms. Some examples are 1) convection drying, 2) contact drying, 3) open sludge drying beds, 4) reed beds, and 5) solar drying. Because they utilize similar fundamental properties, not all technologies are described here. Dewatering technologies are expected to reduce bacteria levels by 2 log10 units and pathogenic virus concentrations by 1 log10 unit (USEPA, 2003). To assist operation of dewatering technologies discussed in this chapter, Table 8 provides information on how to interpret visually inspected dewatered sludge in regards to the moisture content. Unfortunately, this visual inspection of dried sludge does not provide sufficient insight on pathogen destruction.

Table 8. The meaning of visually inspected sludge summarized (from Imhoff and Hess (1966) using Andreoli et al., 2007). Sludge changes from a liquid to a solid at 18-20% solids.

Visual Inspection

What it means

Dry sludge with scarce and thin cracking

Well-digested sludge with low water content

Large number of medium-sized cracks

Digested sludge with high water content

Small quantities of wide cracks

Poorly digested sticky sludge, requires a long drying period



Sludge drying removes water by evaporation, transpiration by use of deep rooted plants, and transport of water vertically from a drying bed to an underlying drainage layer. Sludge dried in this manner may have been pre-treated (i.e., stabilized) prior in an aerobic or anaerobic reactor. Sludge is placed in layers not exceeding 20-30 cm over a drainage layer and supporting foundational layer until the solids content is reduced to 30%. A mechanical or manual system can be used to turn the sludge. The drying bed may be lined with sand layers on top of concrete, and be open or closed to protect against rainfall. Greenhouses can be used as a cover to provide a barrier to rainfall and also increase temperature. Sludge is more easily removed from a drying bed when the solids content reaches 30%. Pathogens are removed in a drying bed by a combination of desiccation and UV disinfection. Drying obviously occurs better in dry and warm climates and much less in wet and cold climates.

Planted beds can improve dewatering through transpiration provided by deep rooted plants that also help with vertical drainage by roots. Reed bed technology use reeds (tall grasses that prefer marshy locations). The use of plants in dewatering sludge is described later in this chapter in the section that discusses desludging a wastewater lagoon.

4.6.2 Solar drying

Solar drying systems consist of a drying bed that in higher rainfall areas can be enclosed in drying chamber (similar to a greenhouse). Sludge can be turned and aerated by manual labor (using proper protective equipment) or mechanical methods. The enclosed systems may have a mechanical ventilation system installed. Moisture is evaporated from the system to achieve a final solids concentration of 70-90%.

Short wavelength UV light has been found to be effective in reducing pathogen concentrations (Sinton et al., 2002); however, short wavelength UV light is blocked by the sludge layer and many commercial greenhouse roofs found in enclosed solar dryers. Therefore, pathogen die-off mechanisms in an enclosed solar dryer are most likely a result of a reduction in moisture content and exposure to higher temperatures. In one study of a full scale system (Australia), temperatures and moisture content were measured within the sludge along different locations in the solar dryer. Those results showed that the moisture content was reduced from 80% to 30-58% and a temperature of 67.5°C was recorded within the sludge. The authors also reported that though fecal coliforms were identified in the treated sludge, enteroviruses, parasites, E. coli, and Salmonella sp. were not detected in the solar dried product (Shanahan et al., 2010).

4.6.3 Desludging a waste stabilization pond

Removal of accumulating sludge from a waste stabilization pond is important to maintain proper hydraulic conditions which impacts pathogen removal (Ouedraogo et al., 2016). A general rule of thumb is to remove sludge from anaerobic ponds every 2-5 years and from a facultative pond every 5-15 years. Unfortunately, waste stabilization ponds are often designed and operated without consideration of desludging. Regarding design, for locations that use dry desludging methods (discussed below), ponds be designed with a slope towards the discharge side to promote water draining away from sludge that accumulates on the intake side. Furthermore, ponds are typically operated without the cost of desludging included in the operation and maintenance budget (Oakley et al., 2012).

Ponds can be desludged by wet or dry removal methods. Wet removal requires the use of sludge pumps, vacuum trucks, and dewatering equipment (Carré et al., 1990; Picot et al., 2005). Dry removal methods are less expensive and one method has been demonstrated in detail by Oakley et al. (2012). Greater details on sludge removal from waste stabilization ponds is available in Carré et al. (1990), Goncalves (1999), Picot et al. (2005), Von Sperling (2007), and Oakley et al. (2012).

Dry removal methods require that the sludge first be dried to a dry solid (18-20% solids). Sludge changes from a liquid to a solid around this percent solids and after it becomes a solid it won’t decrease in volume much more. The reason to dry the sludge first is is because heavy equipment will become stuck in deep sludge that is not dried to a solid. If the influent is routed away from a pond and the contents are allowed to drain so the sludge dries, deeper sludge will not dry because a crust will form on the surface that may extend to depth of 0.15 to 2 m. This crust will prevent the deeper sludge from drying.

Oakley et al. (2012) presents a detailed method to desludge a waste stabilization pond, using a case study from Honduras. In this system, the pond is first drained to initiate the drying process. The detailed method provides a method to estimate the drying time from readily available information. It also provides equations to estimate the volume of sludge that will need to be removed. Wetland plants (preferably native) that have deep roots are then planted before the crust forms. The wetland plants are also selected so they grow quickly. The plants help to dewater the sludge to their root depth through evapotranspiration. This depth can extend to > 1 m. After drying of surface and deep sludge, the sludge can be removed with a mechanical excavator as shown in Figure 6.

Figure 6. Waste stabilization pond sludge removal from waste stabilization pond in Tela, Honduras. In the upper photo an excavator removes surface and deep sludge (up to 1 m) from pond planted with deep root wetland plants. In total, 3,000 m3 of dried sludge was removed in 5 days with the excavator (after pond was dried by draining and planting of deep rooted wetland plants) (photos provided by Stewart Oakley with permission).

Dewatered sludge will contain pathogens, including helminths. Care thus needs to be made to ensure humans and livestock do not come in contact with the dewatered sludge. Pond designs should thus include reserving an area where excavated sludge can be safely stored for ≥ 1 year to meet the WHO guidelines for inactivation of helminth eggs (WHO, 2006).

4.7 Other Treatment Methods

Fecal sludge has been treated using black solider flies (Hermetia illucens). A comprehensive manual on use of black soldier flies to process organic waste is available (Dortmans et al., 2017).

Black soldier fly larvae have been shown to grow on organic wastes such as fecal sludge. The larvae aerate the mixture and the resulting compost can be used as a soil conditioner. Some have suggested that the fly prepupae that are produced during composting could also be used to produce animal or aquaculture feed (Gabler, 2014) because the prepupae consist of 40% protein and 30% fat (Sheppard et al., 2002). This technology has been reported in laboratory experiments to reduce Salmonella spp. by 6 log10 in eight days. No reduction was observed however over that same time period for Enterococcus spp., bacteriophage ΦX174 or Ascaris suum ova (Lalander et al., 2013).

5.0 Additional Information on Fecal Sludge Management

As mentioned in the chapter’s Introduction, fecal sludge is a distinct type of wastewater sludge that is generated onsite (e.g., discharge to toilet/latrine pits and septic tanks) and is not transported through a sanitary sewer. Many documents report specifically on fecal sludge management (e.g., Strande et al., 2014; Semiyaga et al., 2015; World Bank, 2017). Fecal sludge has different physical-chemical characteristics than sludge generated at a centralized treatment plant. These particular characteristics have been summarized elsewhere (Strande et al., 2014). Fecal sludge that has aged in a pit or tank is believed to have reduced pathogen levels in because of aerobic and anaerobic biological processes that occur in the pit. Furthermore, helminth egg concentrations are reported to be much higher in sludge collected from toilet/latrine pits and septic tank waste and raw sewage sludge (Semiyaga et al., 2015).

The service chain for fecal sludge management is provided in Figure 7. As shown in Figure 7, there is a potential for increased human health risk associated with exposure to pathogens present in the fecal sludge during the collection of the material and subsequent transport to a treatment or disposal facility. Thus design and management of toilet/latrine and septic systems in rural and urban areas must also consider safe collection and transport of the contents. This differs from a system where excreta is collected at the point of production and transported in a secure sanitary sewer to a centralized wastewater treatment plant. Sanitary sewers however are not perfect because they are known to develop cracks and can leak their contents to groundwater and surface water. They also come with added economic and environmental costs. For example, an economic comparison of a sanitary sewer connected to an activated sludge treatment system (a relatively more expensive sanitation technology) was compared to septic tank systems that were integrated with collection and transport of fecal sludge that was then treated in drying beds. That study (Dodane et al., 2012) showed the combined capital and operating costs for the centralized activated sludge system were five times greater than the decentralized onsite system with fecal sludge management. Bathroom and collection infrastructure have also been shown to have higher energy intensity (and thus carbon footprint) than associated treatment technologies such as waste stabilization ponds and upflow anaerobic sludge blanket reactors (Cornejo et al., 2013).

Figure 7. Fecal sludge sanitation service chain (reprinted from Water, Sanitation & Hygiene Strategy Overview, Bill & Melinda Gates Foundation, 2012)

In addition, fecal sludge is widely produced around the world, but is currently poorly managed. For example, in a study of twelve cities, approximately 66% of urban households were found to rely on onsite sanitation technology (WSP, 2014). These onsite systems would thus generate fecal sludge. However, only 22% of the fecal sludge produced in these 12 cities was estimated to be safely managed. One reason for this is because as currently practiced, fecal sludge management is mostly unplanned and managed by nonregulated informal private entities (WSP, 2014). To demonstrate the importance of the health implications of improper fecal sludge management, Figure 8 shows that for the example of Dakar, most human excreta is contained at the house level. However, as the fecal matter moves through the sanitation service chain, there is a large loss of it (and pathogens associated with the waste) to the urban environment. This example is not to say that decision makers should advocate only for centralized systems. This is because onsite wastewater management will have a continued role to play in rural and urban settings and sludge produced at a centralized treatment plant can also be unsafely managed.

Figure 8. Fecal Waste Flow Diagram for Dakar (Senegal) (reproduced with permission from a Research Brief developed by the Water and Sanitation Program, The World Bank Group, 2014).

After it is collected and transported, the fundamental processes of pathogen fate and the treatment technologies applied to fecal sludge are similar to processes and technologies described in Sections 3 and 4 of this chapter. Figure 9 shows how collection and treatment of fecal sludge is currently practiced in some parts of the world. Strande et al. (2014) provide design of many examples for technologies to treat fecal sludge.

Figure 9. a) Transport of fecal sludge from an informal settlement in Nairobi. b) Addition of water to pit latrine to aid removal of pit contents in Nairobi, c) drying bed for treatment of fecal sludge in Dakar, d) biogas reactors used to stabilize fecal sludge in Ouagadougou, (photos (a-d) provided by Linda Strande with permission) pilot composting facility that combines fecal sludge and municipal solid waste in Bangalore (photo (e) provided by Christian Zurbrügg with permission).

6.0 Data on Pathogen Reduction in Sludge Management Systems

The removal of pathogens during sludge management clearly depends on a number of environmental factors as well as engineering design and operation and maintenance practices, as demonstrated in the previous sections. Data from a review of the literature have been collected about pathogen removal during sludge management. The following four factors were found to have the largest impact on pathogen removal: 1) retention time, 2) temperature, 3) pH, and 4) moisture content. Sunlight exposure is not expected to result in significant removal of pathogens. These four factors are summarized in Table 9. Table 10 provides a summary of typical pathogen removal efficiencies for specific technologies used for sludge management.

Table 9. Summary of key factors and strategies to enhance pathogen removal in sludge management

Factor

Pathogen Removal is ↑ Enhanced or ↓ Reduced Under the Following Conditions

Pathogen Group





Viruses

Bacteria

Protists

Helminths

Sludge Temperature

Higher Temperature = ↑ Pathogen Removal

Xa

X

X

X

Retention Time

Longer Retention Time = ↑ Pathogen Removal

XX

XX

XX

XX

pH

Higher pH = ↑ Pathogen Removal

XX

XX

X

X

Free ammonia concentration

Higher NH3 concentration = ↑ Pathogen Removal

XX

XX

XX

XX

Moisture Content

Lower Moisture = ↑ Pathogen Removal

XX

XX

XX

XX

Sunlight (UV) Exposure

Sunlight (UV) exposure is not expected to be a significant removal mechanism for most technologies used for sludge management unless it raises temperature or results in desiccation of the sludge









X means less impact XX means more impact



Table 10. Summary of indicator and pathogen removal for specific sludge management technologies

Sludge Management Technology



Expected Indicator and Pathogen Destruction

Organisms Log10 Reductions Reference

Aerobic Digestion



Thermophilic digestion is more efficient at removing pathogens than mesophilic digestion



Helminth ova are reduced to varying degrees, depending on the hardiness of the individual species

Fecal indicators, bacterial organisms and viral pathogens 1 USEPA, 2003

Anaerobic digestion



Thermophilic digestion is more efficient at removing pathogens than mesophilic digestion.

Bacterial organisms

Viral Pathogens

Fecal indicators



2

1

1 to 2



USEPA, 2003
No observed impact observed on Giardia cysts was found in one study

Giardia lamblia

Cryptosporidium parvum

0.55

1.56

Kinyua et al., 2016
In a study of 18 large full-scale mesophilic anaerobic digesters in the U.S. the average reductions

Enteric viruses

Salmonella

Fecal coliforms

Total coliforms

1.25

1.62

1.96

1.92

Pepper et al., 2010
If the temperature is raised to  50°C virus inactivation is reported to reach 99.99% Viruses 4 Sanders et al., 1979

Composting

If composted at 40°C or higher for up to 5 days

Insufficient data available for helminths and protozoa

Fecal indicators

Bacteria

Viruses

2 to 5

1 to 2

1 to 2

USEPA, 2003

Heat Drying

Temperatures above 80°C can be achieved in most of these systems, which would ensure that sludge is virtually free of pathogens and meets health standards for less restricted land applications.



Chemical Stabilization by Addition of Alkaline Materials

Fecal coliforms are reduced to below the limits of detection only 4 hours after adding quicklime (CaO) to sludge at a concentration of 2%



After 14 days with a quicklime dose of 8%.



Ascaris eggs in sludge may retain viability, but were unable to develop past the unicellular stage after treatment with quicklime at 10%;



Exposure to quicklime for 5 months resulted in their loss of viability

C. perfringens vegetative cells 3 Andreadakis, 2000
The addition of lime at a ratio of 0.3 g lime for each 1 g of waste activated sludge 5 days reduced viable ova from 89 to 22 ova/dry g (0.6 log10 units)

Fecal coliforms

Helminth eggs

>4

0.5

Farzadkia and Bazrafshan, 2014

Thermal Treatment

High temperatures can be reached in thermal treatment processes such as fluidized bed dryers and drum dryers that will ensure the sludge is virtually free of pathogens and meets health standards for less restricted land applications.



A solar concentrator has been demonstrated to increase temperature of faecal sludge; reductions in one day

Helminth eggs 2.96 Foote et al., 2017

Dewatering (Drying Beds and Solar Drying)



No literature was identified for other pathogens.

Fecal indicators

Bacteria

Viruses

1 to 2

2

1

USEPA, 2003

Thickening and Mechanical Presses

Sludge thickening is not expected to reduce the concentration of pathogens to any significant manner.



7.0 Conclusions

During sludge processing, pathogens are inactivated by different mechanisms. The efficiency of these mechanisms is dependent on a number of environmental, design, and operational factors. Temperature and time have been identified as perhaps the two most important factors in achieving significant pathogen destruction during sludge management (Sahlström, 2003) and pH and moisture content are also important. Examples of sludge management technologies that can achieve temperatures greater than 45°C if properly designed and operated are: 1) composting, 2) thermal treatment, and 3) thermophilic digestion. For lower temperature treatments, pathogen concentrations are reduced but still routinely identified in treated sludge (Gantzer et al., 2001).

Other ways to improve pathogen destruction during sludge treatment are reducing moisture content by drying (through evaporation, transpiration by use of deep rooted plants, and drainage of water vertically from a drying bed), raising pH, and/or increasing the concentration of free (unionized) ammonia. Sunlight’s role in decreasing pathogen concentrations in sludge is mostly through supporting desiccation of drying sludge (USEPA, 2003). Biological processes (e.g., digestion, composting) can reduce the volatile organic fraction of sludge; thus, reducing disease vector attraction and bacterial growth because of loss of available organic substrate (USEPA, 2003).

Table 11 provides recommendations made by the World Health Organization (2006) for storage treatment of dried excreta and fecal sludge. Note the information provided in this table shows the importance of storage time, temperature, and pH in reducing pathogen levels. The World Health Organization also recommends an additional barrier of safety of waiting one month between the time the stored excreta is applied to a crop and the time the crop is harvested.

Table 11. World Health Organization (WHO) recommendations for storage treatment of dry excreta and fecal sludge (reprinted with permission from Table 2 (Page xvi) from the WHO 2006 Guidelines for the Safe Use of Wastewater, Excreta, and Greywater Volume 4 Excreta and Greywater Use in Agriculture, 2006.)

Treatment

Criteria

Comment

Storage at ambient temperature of 2 to 20°C

6 months to 2 years

Eliminates bacterial pathogens, regrowth of E. coli and Salmonella may need to be considered if rewetted; will reduce viruses and parasitic protozoa below risk levels.  Some soil-borne ova may persist in low numbers.

Storage at temperatures > 20 to 35°C

> 1 year

Substantial to total inactivation of viruses, bacteria, and protozoa; inactivation of schistosome eggs (< 1 month); inactivation of nematode (roundworm) eggs; survival of a certain percentage (10 to 30%) of Ascaris eggs (≥ 4 months), where a more or less complete inactivation of Ascaris eggs will occur within 1 year.

Alkaline Treatment

pH > 9 for > 6 months

If temperatures > 35°C and moisture is < 25°C, lower pH and/or wetter material will prolong the time for absolute elimination

Helminth eggs are particularly resistant to sludge treatment processes, including thermal and chemical treatment. Therefore, in regions where helminths are endemic, it is recommended that sludge be reused with extreme caution, especially given that few laboratories in these regions are equipped to monitor helminths in sludge on a routine basis. In regions where helminth infections regularly occur, it is recommended to manage sludge in these settings to provide simple treatment in sludge-drying beds, and then to bury the dried sludge to further reduce health risks by minimizing exposure (Figure 10).

Figure 10. Example of safe management of sludge in a small town in southern Brazil with sludge drying beds (upper left), emptied manually by personnel using protective equipment (lower left); dried sludge is then buried onsite in pits (upper and lower right) (photos provided by Matthew E. Verbyla with permission)

References

Toggle
